Teknoware provides options of Web based Advanced Central monitoring through TCP/IP. This enables monitoring the state of a central battery system via internet. The system includes a Web module, which is connected in the central battery system. Each central battery system has an IP address and a normal web browser function as the user interface. WebACM indicates test log information, option to remotely run emergency light and battery tests and adds a map view to the system, which makes locating the luminaires easy and fast.

WebACM is a user-based software, with several user levels for locations where there might be several people using the system. WebACM is available for addressable central battery systems in 6 series and 7 series panels. The system does not require a separate software, a PC or a multimedia device with a web browser is sufficient.

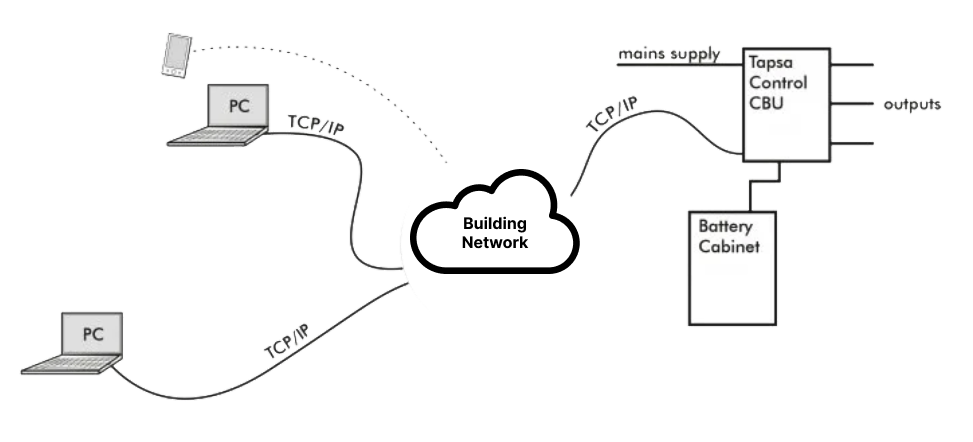

WebACM Interface connection with CAT 5/6 cable
